Technology

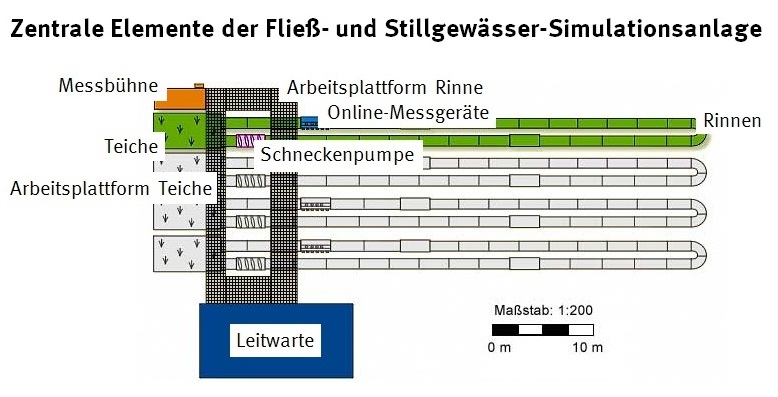

Graph of the individual components of artificial stream and pond system: measuring stage, ponds, platform ponds, channels, work platform Groove, screw pump, control room, online instrumentsClick to enlarge
Key elements of artificial stream and pond system
Source: Vera Gutofski

Table of Contents



Technical specifications

The basic components of the artificial stream and pond system:

  • Work platform
  • Control room
  • Measuring platform
  • Measurement technology
  • Streams
  • Screw pumps
  • Ponds


Work platforms

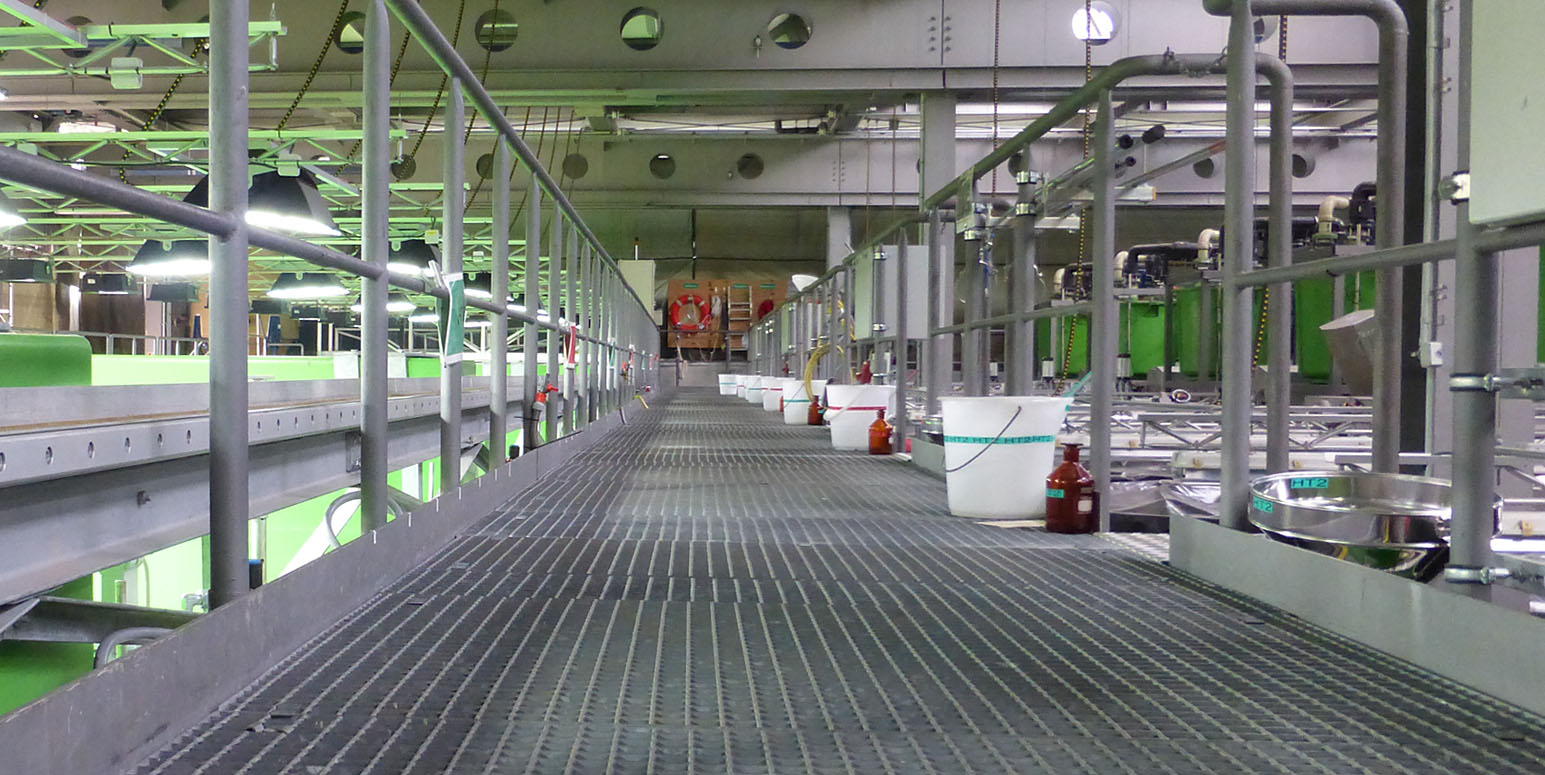

Work platform above the streams

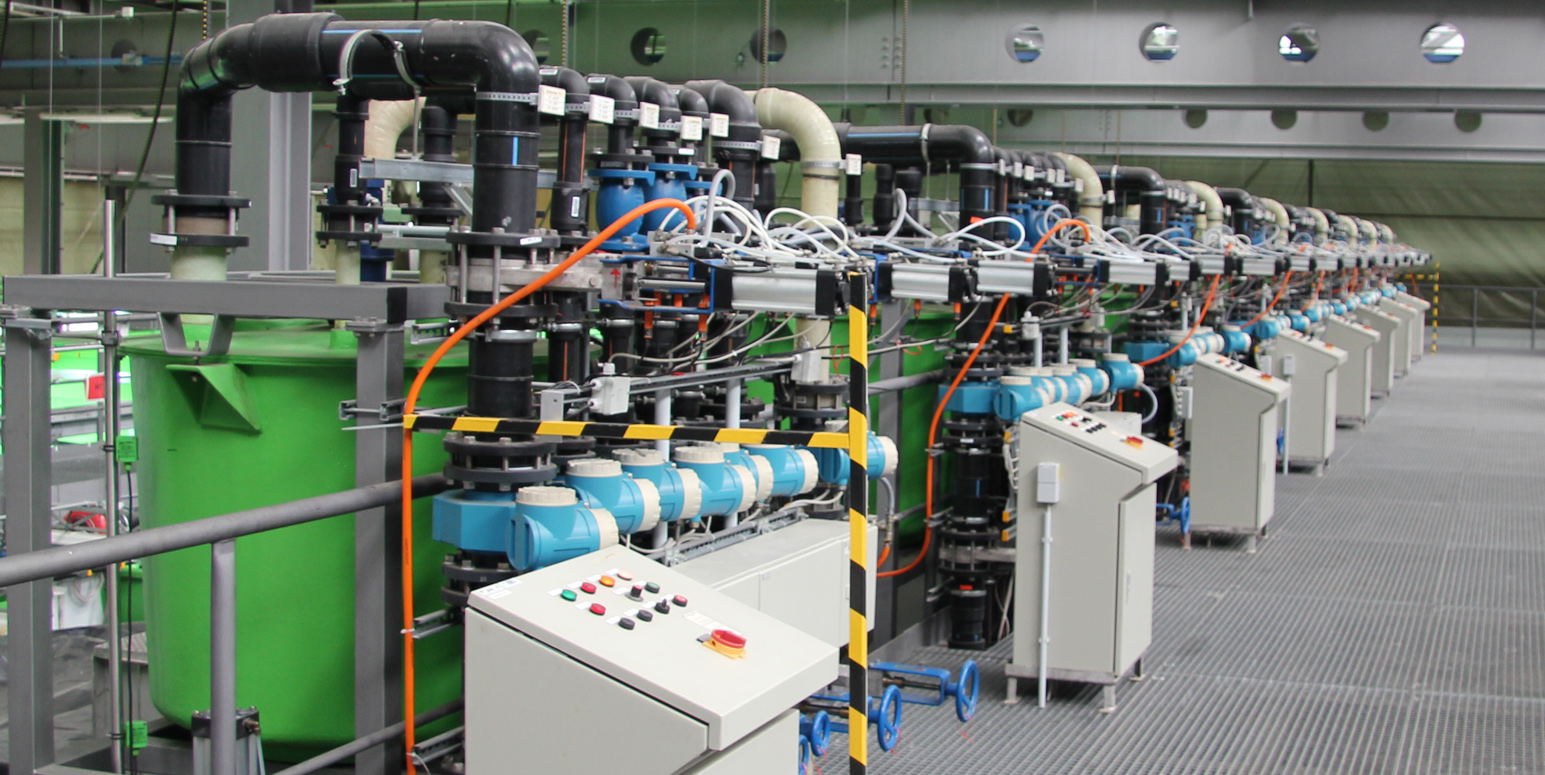

For maintenance work (e.g. on online measuring equipment), for manual operation of the screw pumps and for operating the rough and fine dosing systems. The rough dosing systems are used to add large amounts of water, which can be pre-mixed according to experimental demands. The fine dosing systems allow small amounts of substances to be added in various ways (e.g. continuously over a longer period of time). The measuring equipment installed on the work platform and designed for determining the total nitrogen concentration (TNb) and the concentration of total organic carbon (TOC) can be used for single as well as for continuous (online) measurements.

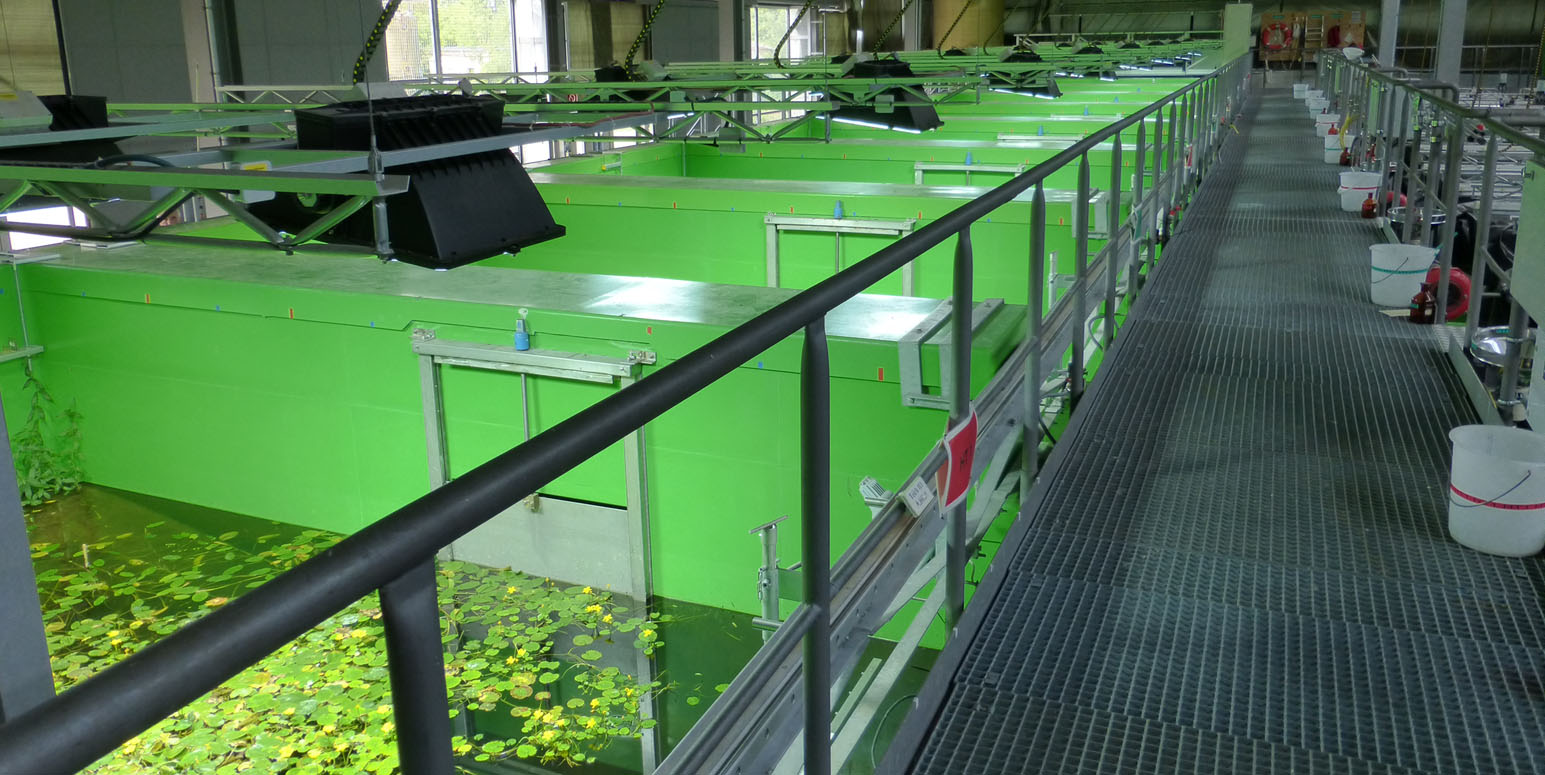

Work platform above the ponds

For maintenance work, sampling, and operating the measuring platform

<>


Control room

The control room is equipped with computers for complete system control and for capturing the measured data.

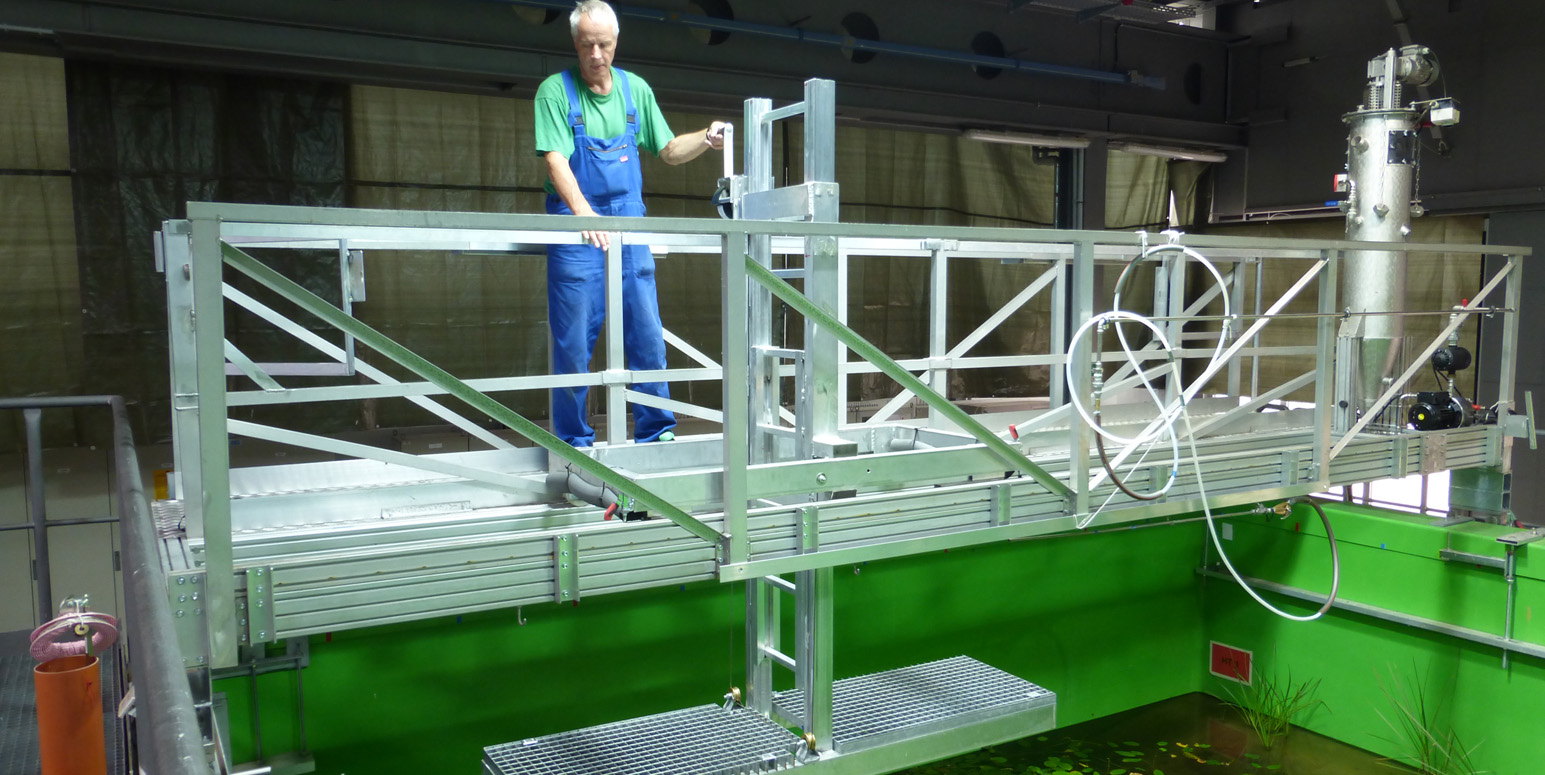

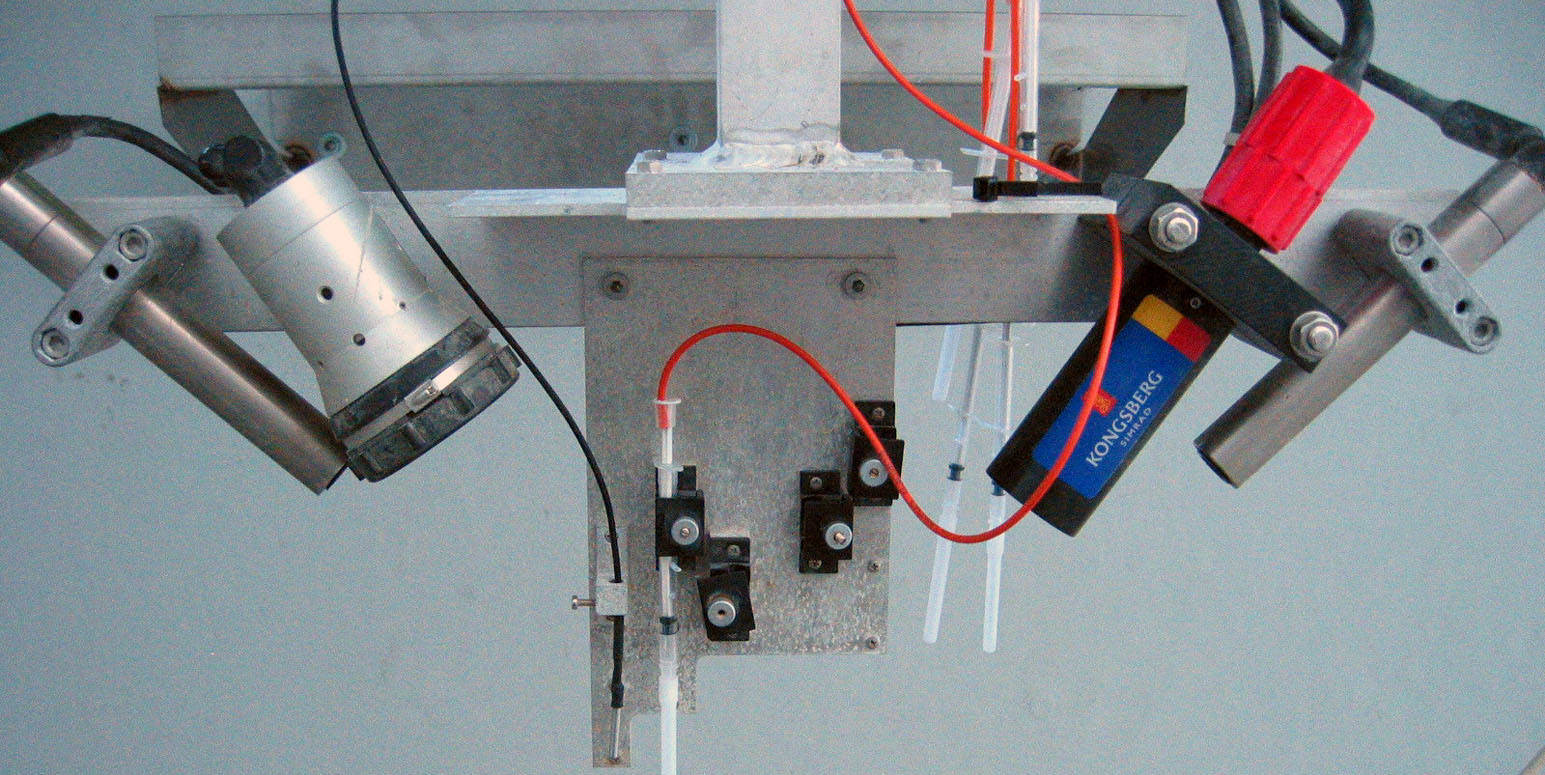

Measuring platform

The mobile measuring platform is equipped with a computer-controlled profiler system which allows highly accurate and reproducible profile measurements in the water and the sediments of the ponds.

Equipment:

  • microsensor (optode) for measurement of oxygen distribution
  • microelectrode for determination of pH
  • underwater video camera
  • underwater lighting device
  • laserpointer for positioning
  • computer system for controlling, data acquisition and data communication
<>

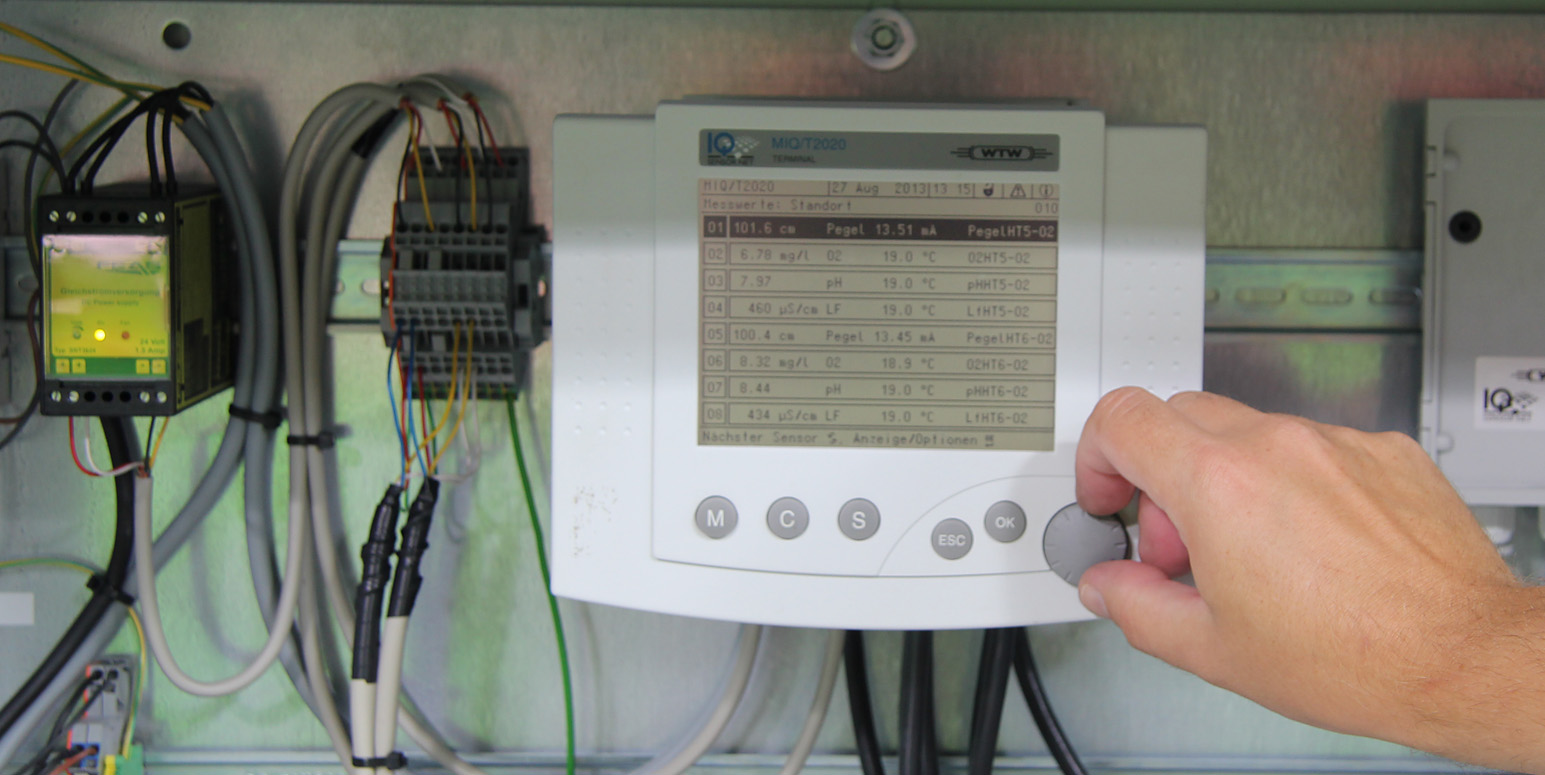

Measurement technology

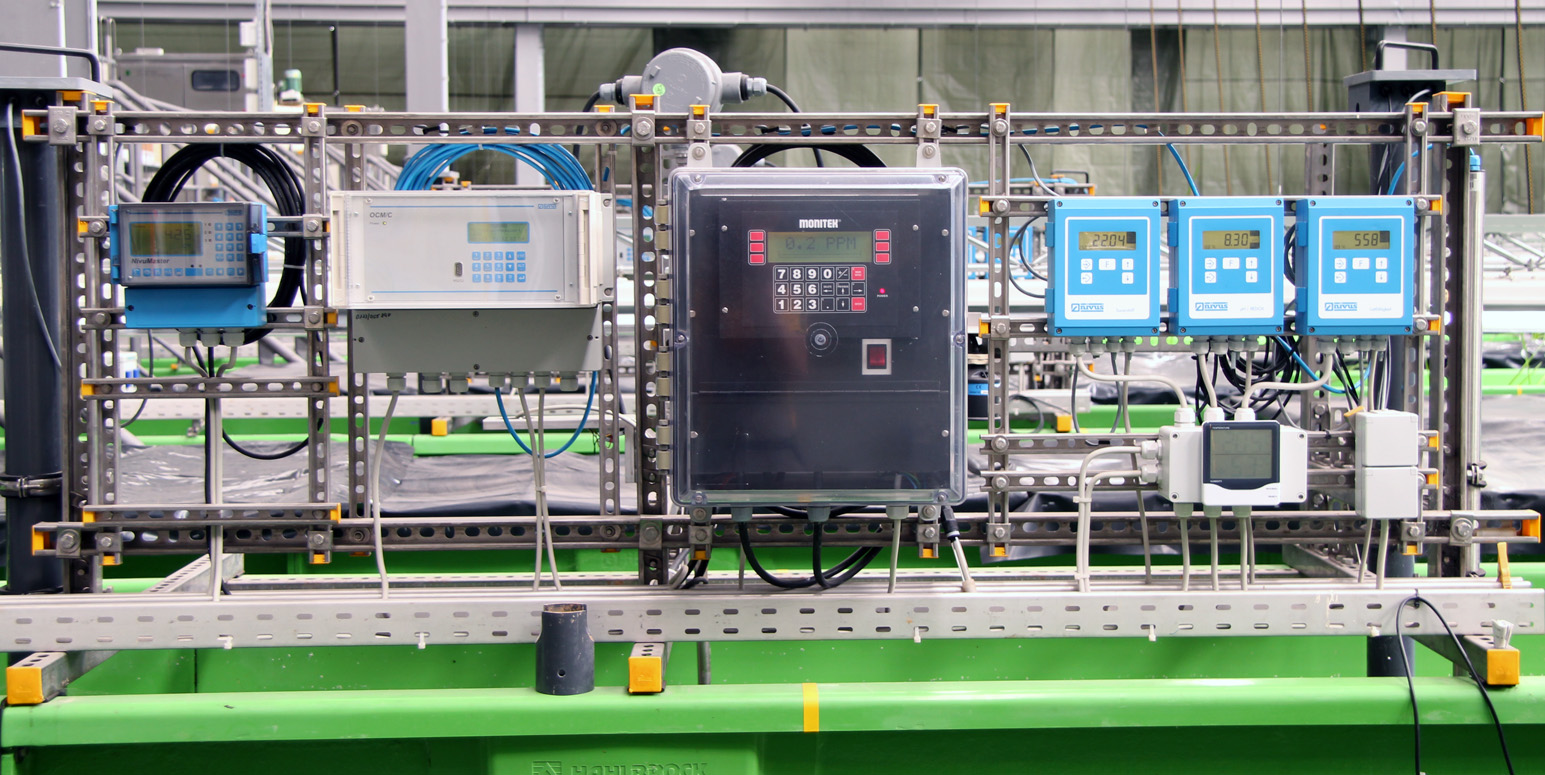

Each stream is equipped with online measuring equipment. The following parameters can be measured continuously:

  • conductivity
  • oxygen
  • pH
  • turbidity
  • flow velocity
  • water level
  • TOC (total organic carbon)

In the ponds the online measurements include oxygen, conductivity, pH, water temperature, and water level. The online data are transferred to the control room continuously.

In addition the following parameters are measured according to demands:

  • Contaminants in water, sediment and biota by means of specific chemical analysis such as gas chromatographic-mass spectrometric analysis (GC-MS) and high-performance liquid chromatography (HPLC)

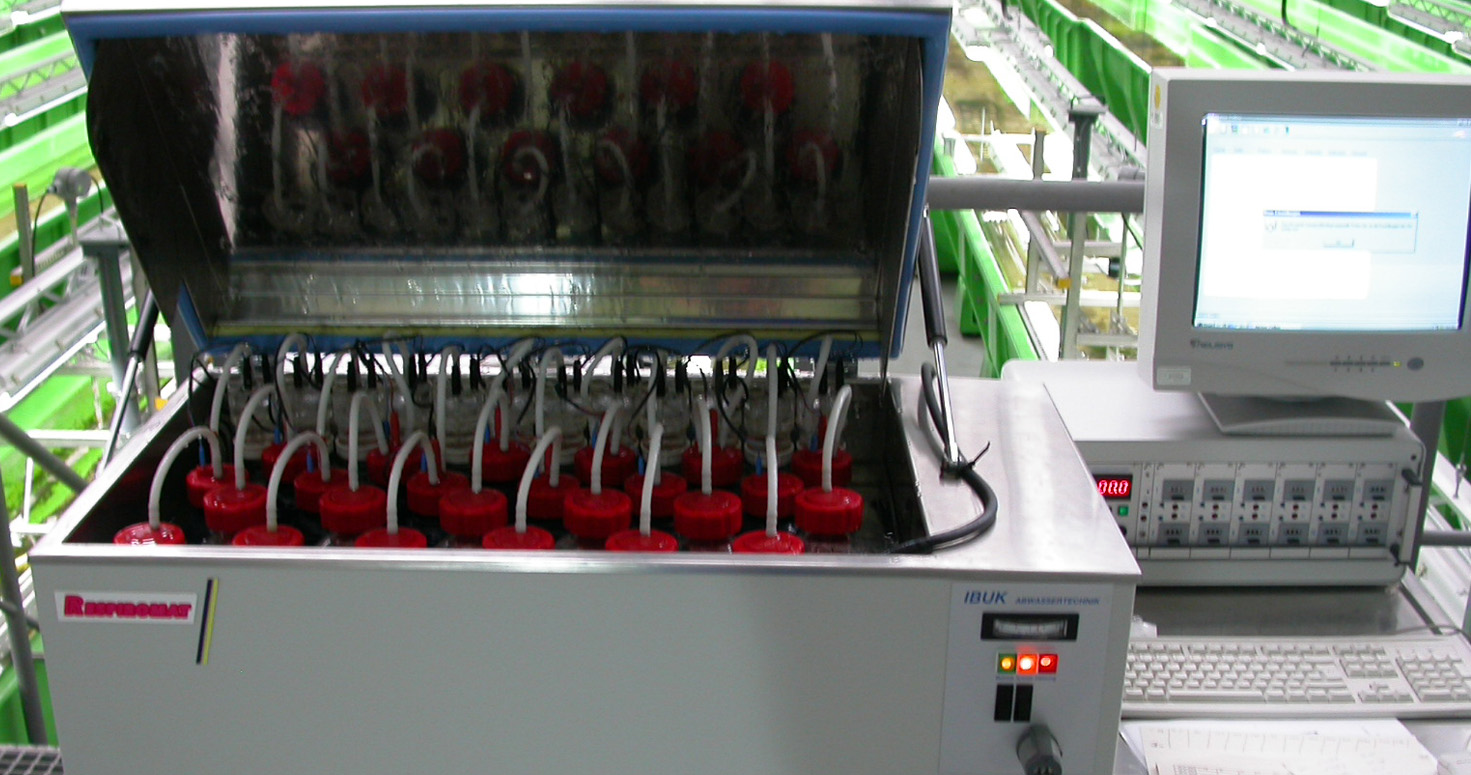

  • BOD (biochemical oxygen demand) employing a respiromat
  • IC (inorganic carbon), DOC (dissolved organic carbon), TOC (total organic carbon) of solid matter
  • alkalinity (automated titration)
  • anions and cations by means of ion chromatography
  • dissolved nutrients (e.g. phosphate, nitrate) by means of continuous flow analyzer (CFA)
  • total nitrogen (TN) and total phosphorous (TP) with pressure digestion and CFA
  • chlorophyll a and pheo-pigments (photometric)
  • biological parameters of plankton, benthos, and aufwuchs
  • dry weight
  • light conditions in the water column and at the water surface
  • redox potential
<>

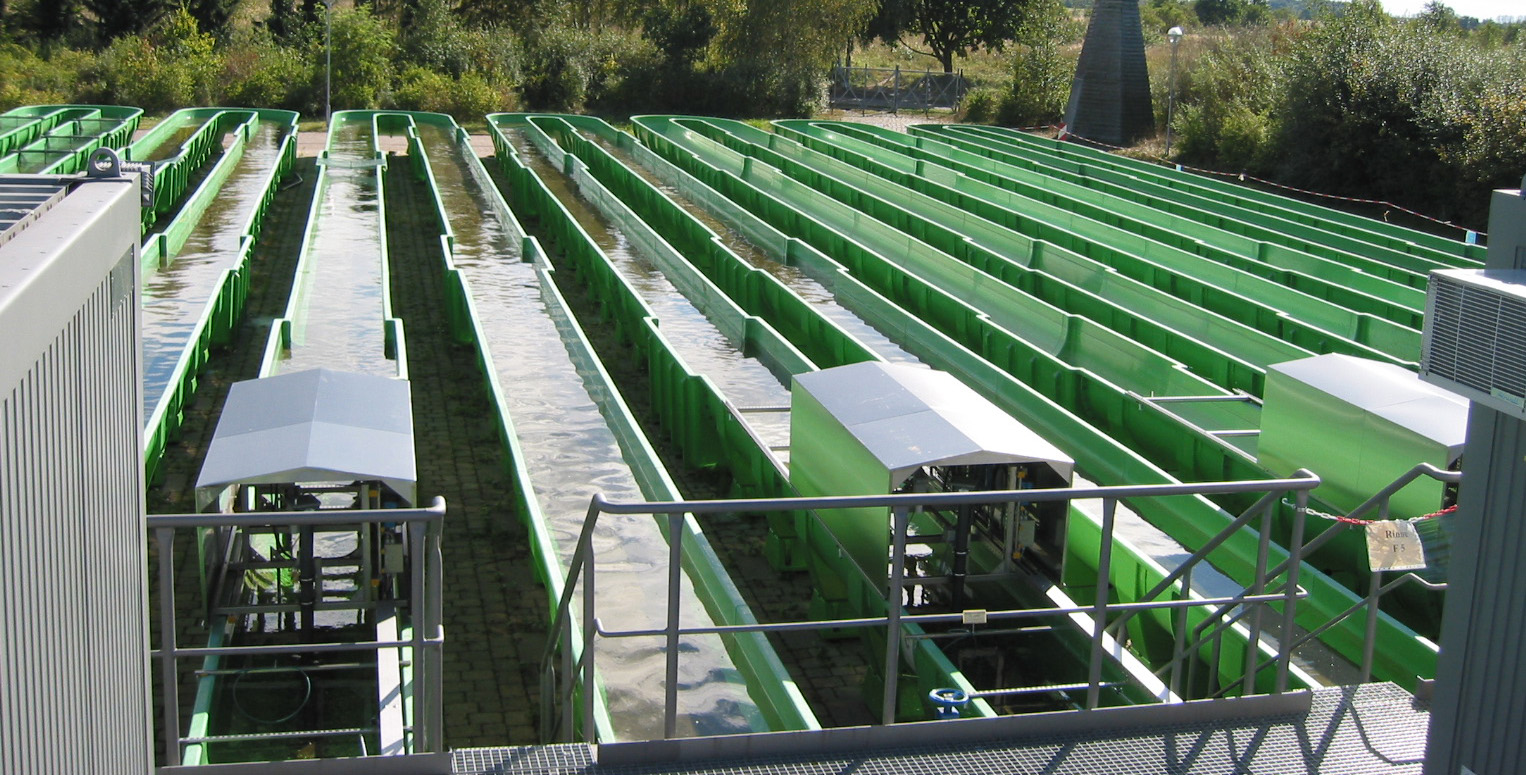

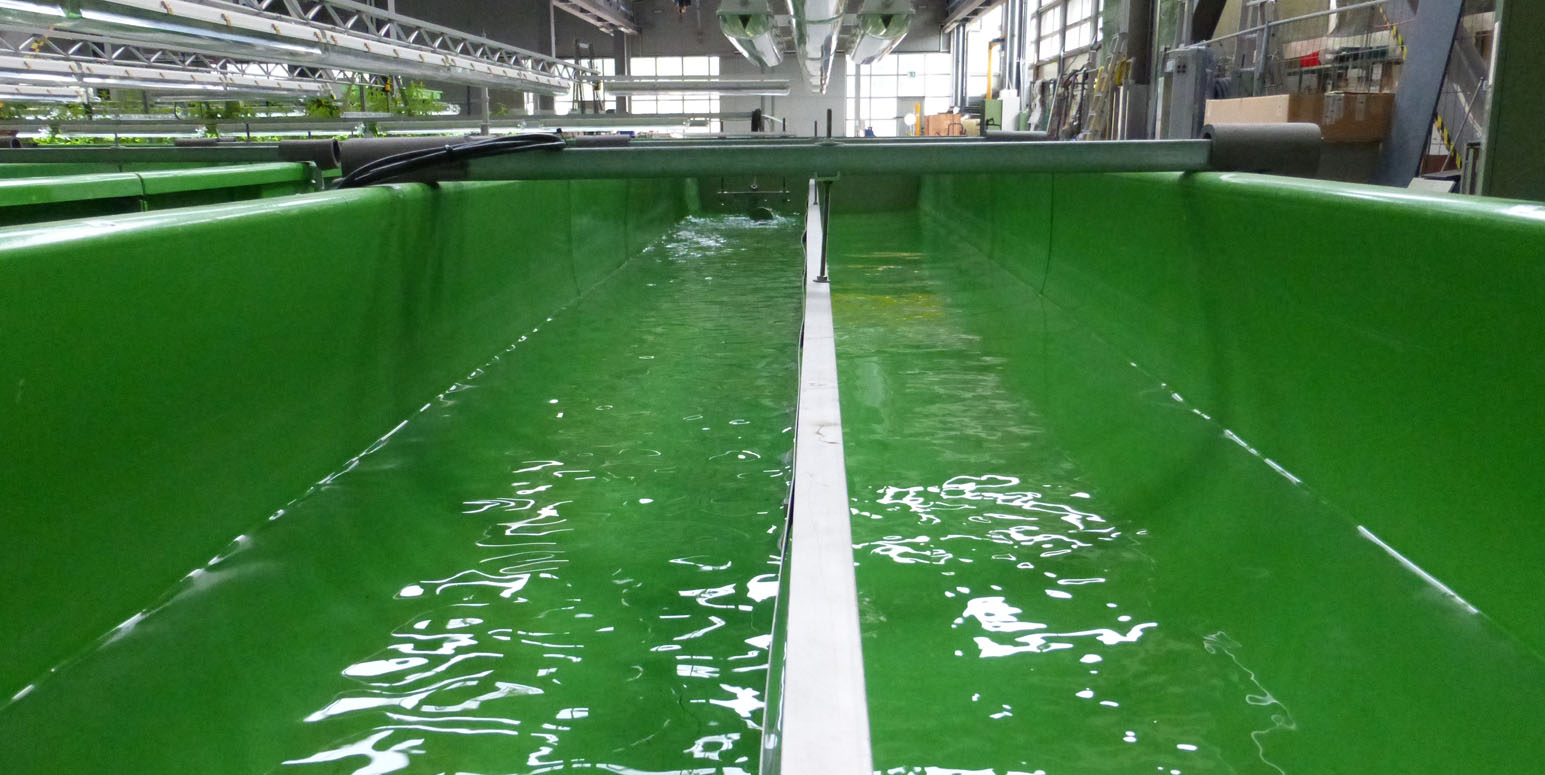

Streams

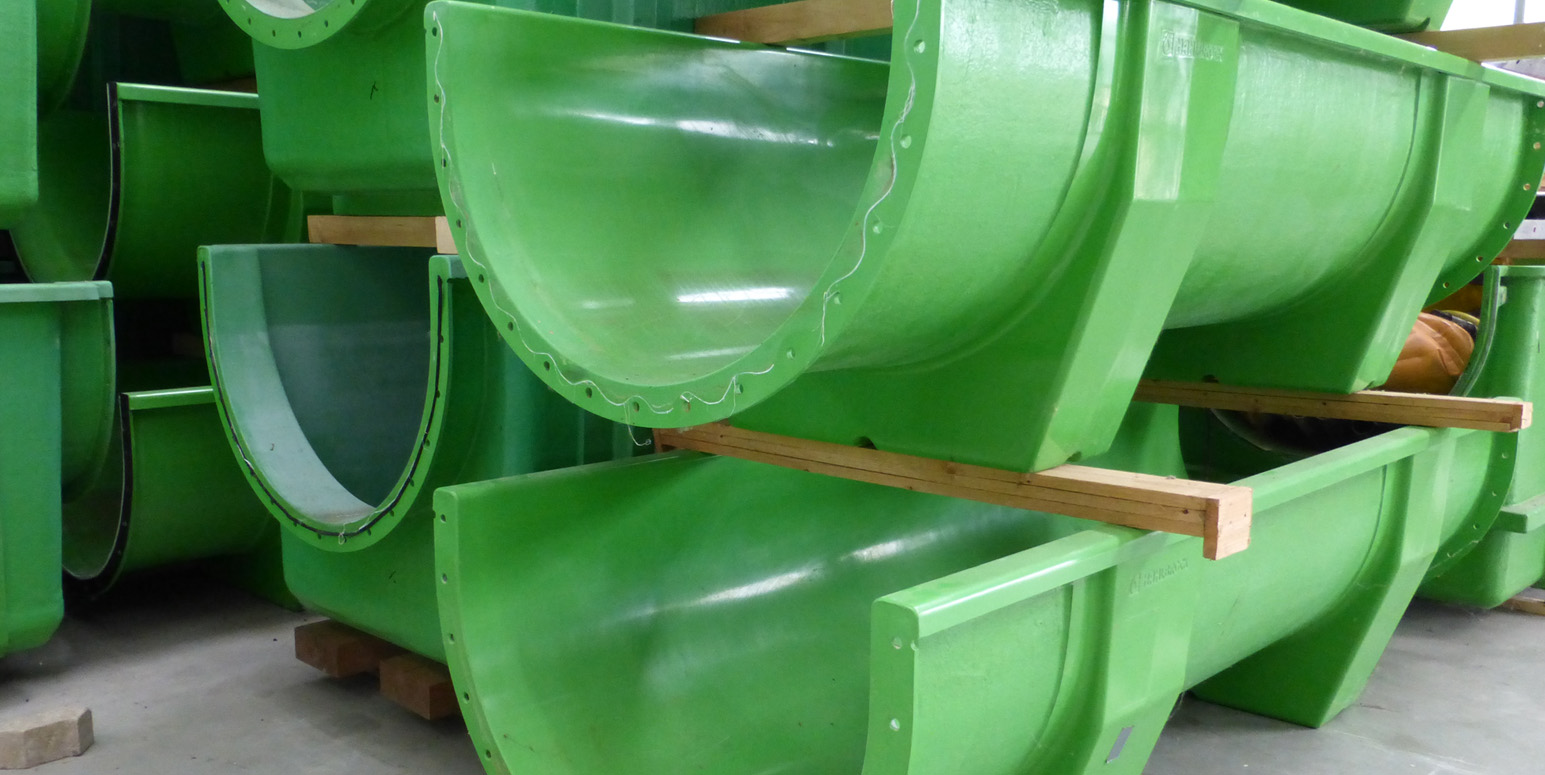

Up to 8 indoor and 8 outdoor stream mesocosms can be constructed by combining riffle segments and pools within a “modular” system. Each stream can be varied in length. For example, 16 independent streams (8 indoor and 8 outdoor), each up to 106 m in length or 2 streams of approx. 800 m length can be set up. The volume capacity is approx. 36,000 litres per a 106 m long stream. For further details, please refer to the technical data sheet.

<>


Screw pumps

For transporting the water in the through-flow or circulation systems, each stream system is equipped with a specially-designed screw pump which does not harm aquatic organisms, including fish. The maximum flow velocity is 0.6 m/s (fast-flowing lowland river). For further details, please refer to the technical data sheet.

Maximum delivery rate: ca. 290 l/s

Adjustable flow velocity: 0,05 - 0,6 m/s

A screw pump in action
Source: Umweltbundesamt

A screw pump in action

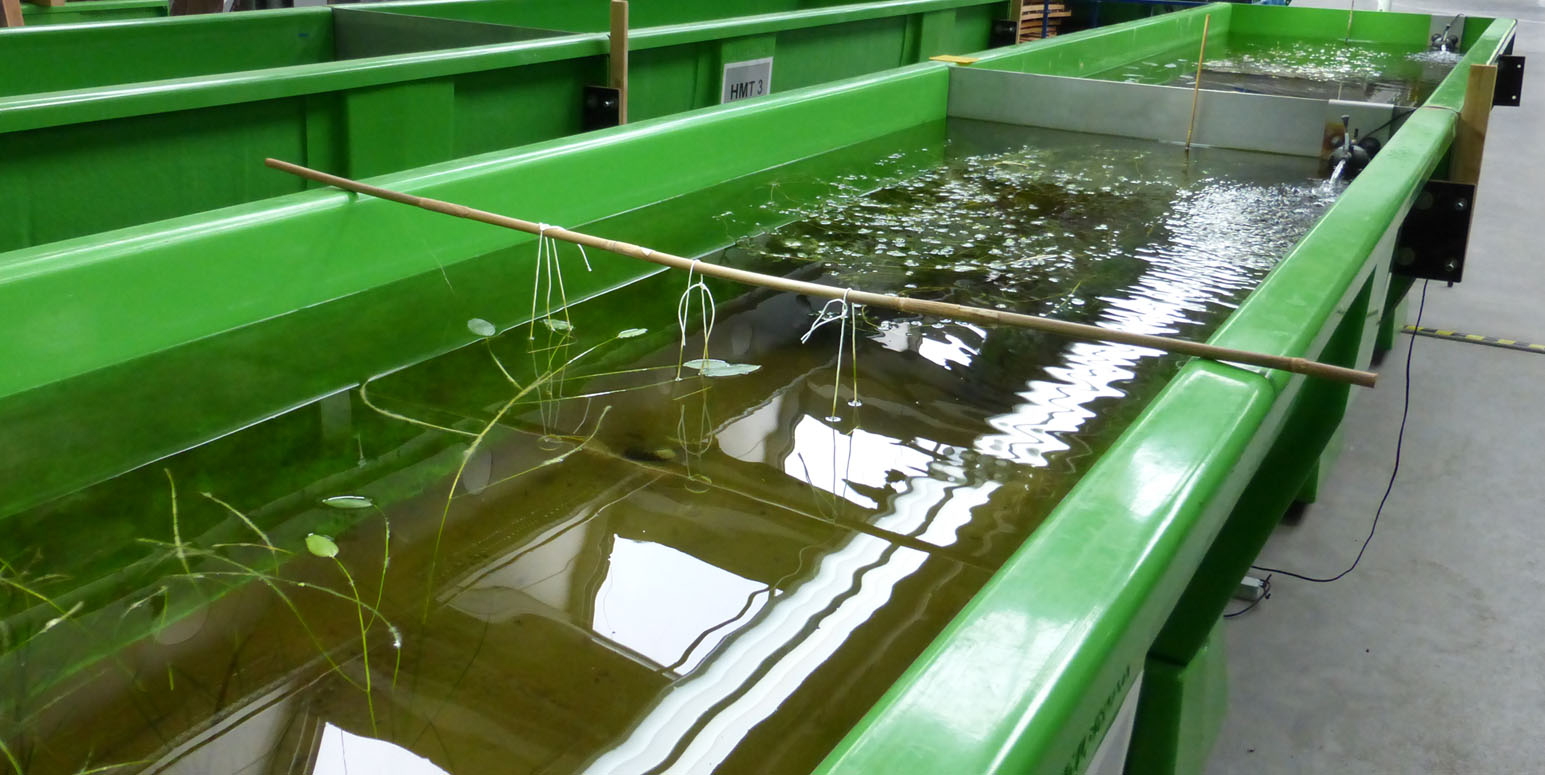

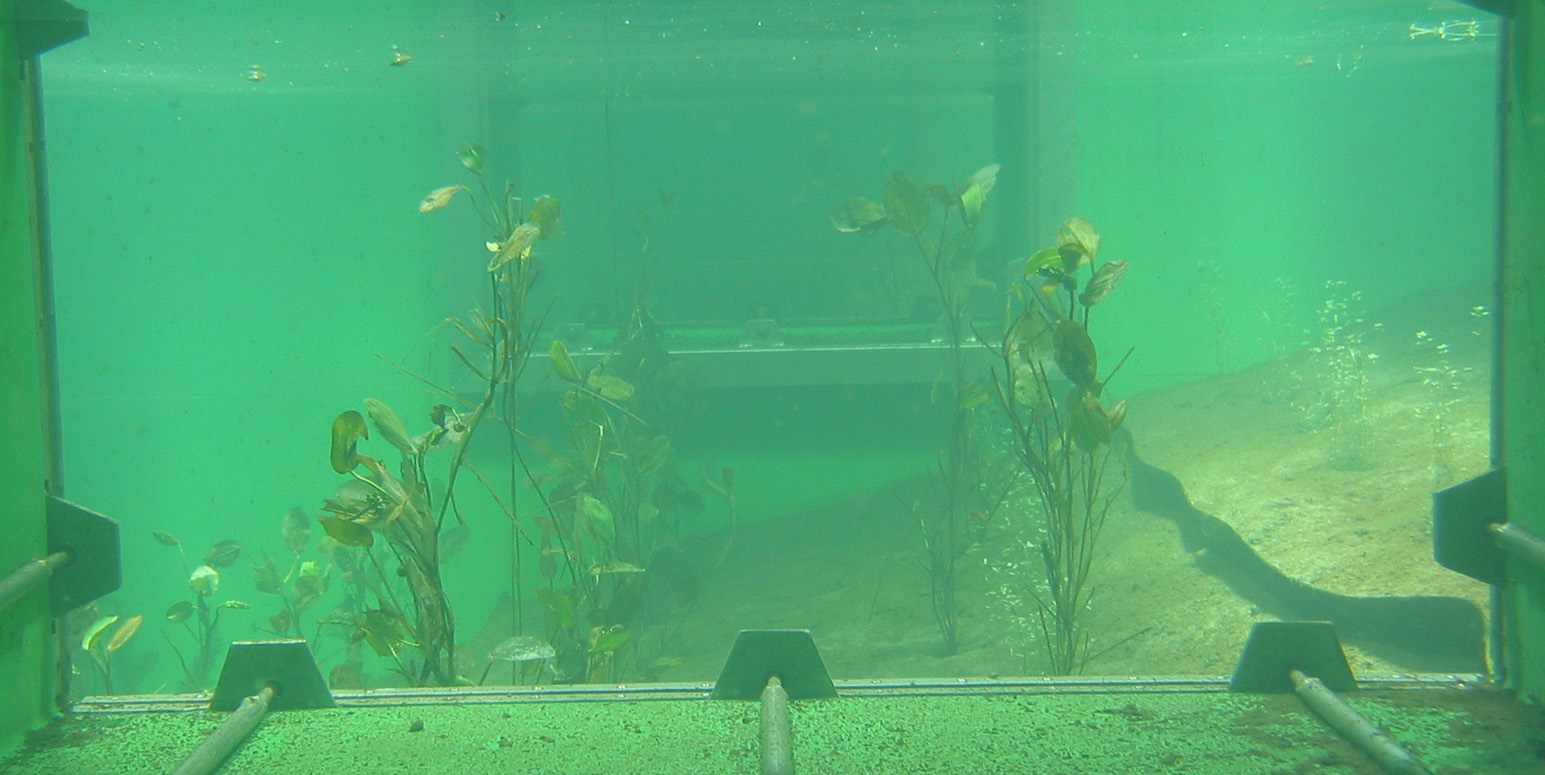

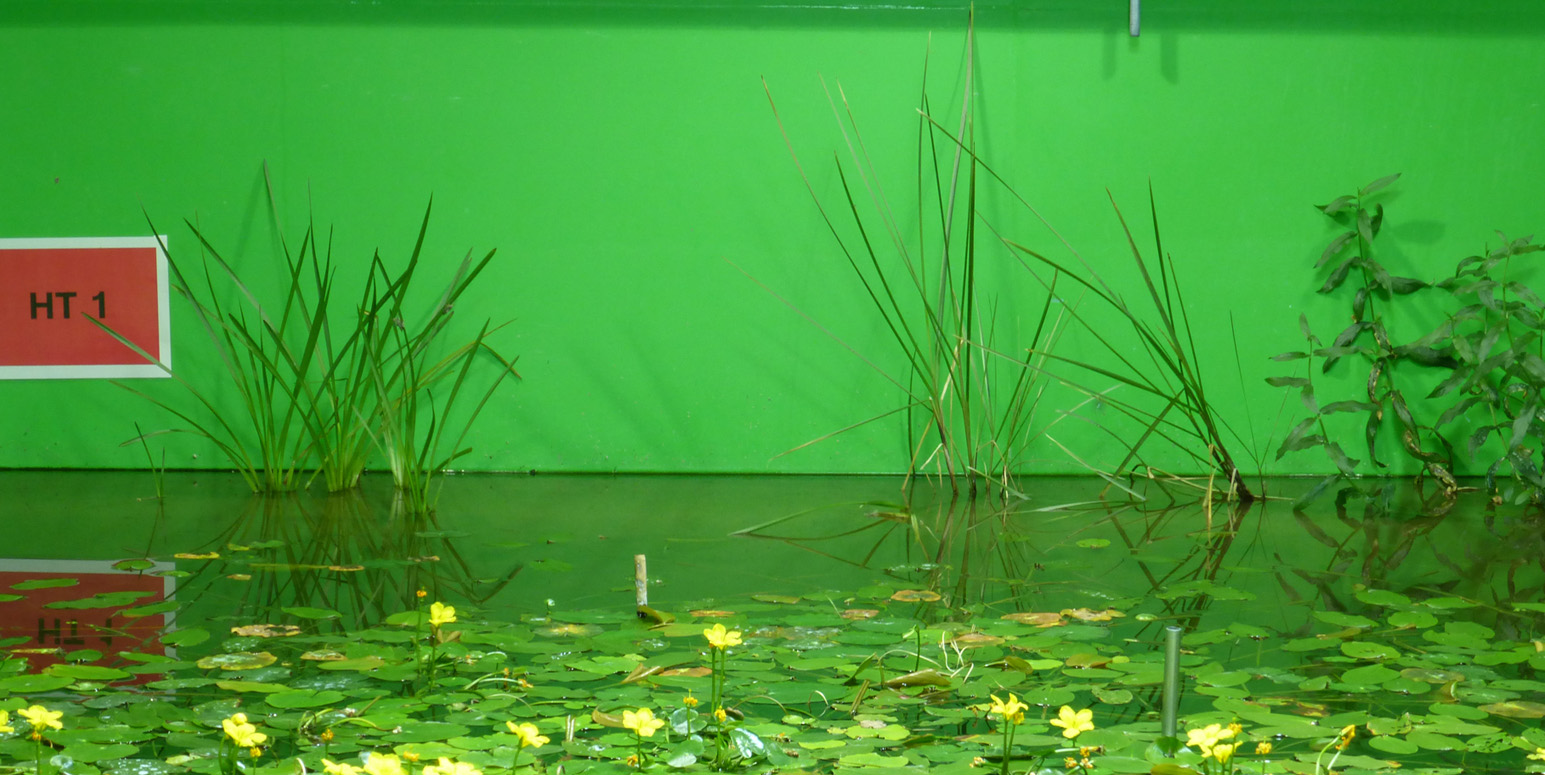

Ponds

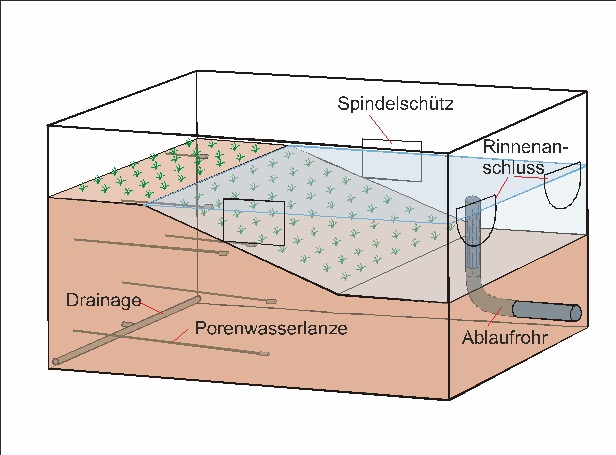

Ponds can be combined with streams to simulate “flow-through ponds”, or can be used independently for the simulation of stagnant water bodies. A passage running beneath the pond allows drainage control and sampling of bank filtrates. The maximum overall capacity of each pond is around 55,000 litres.

The water body can be mixed by fans in order to simulate wind induced circulation.

For further details, please refer to the “Technology” data sheet.

<>

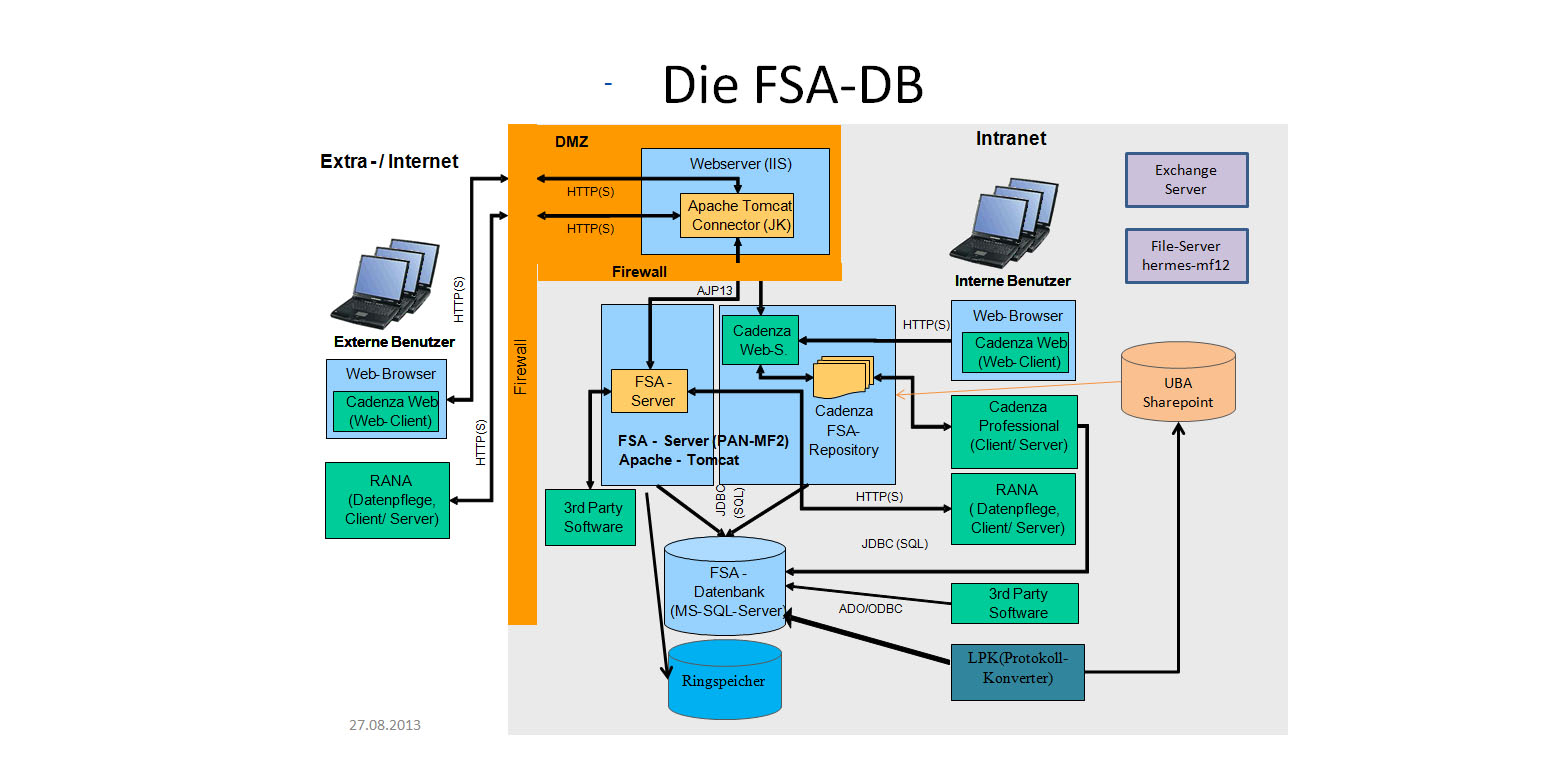

Database

All data from experiments run in the FSA are fed into the central database (FSA-DB) for further analysis.

The input of data, in particular physico-chemical data, from defined analysis protocols in open document format (ODF) or as MS Exel data sheet (*.xls) is automated.

The ponds and streams of the FSA are equipped with an online measurement system, which also includes the meteorological station at the field station of the UBA. Every 10 s, up to 400 data are measured and temporarily stored in a Round Robin database (RRDB). Depending on the project requirements, parts of the data will be stored half automatically or aggregated data (e.g. mean per hour) will be transferred automatically into the FSA-DB. For each measurement device, limit values can be set separately e.g. for an email notification system in case of system failure (alarm system).

The database user program is designed in modular, multilayered architecture based on J2EE Java program. It can be used independently from the system software and is also available via the internet. The components designed for the FSA-DB have preferably been developed using open source software.

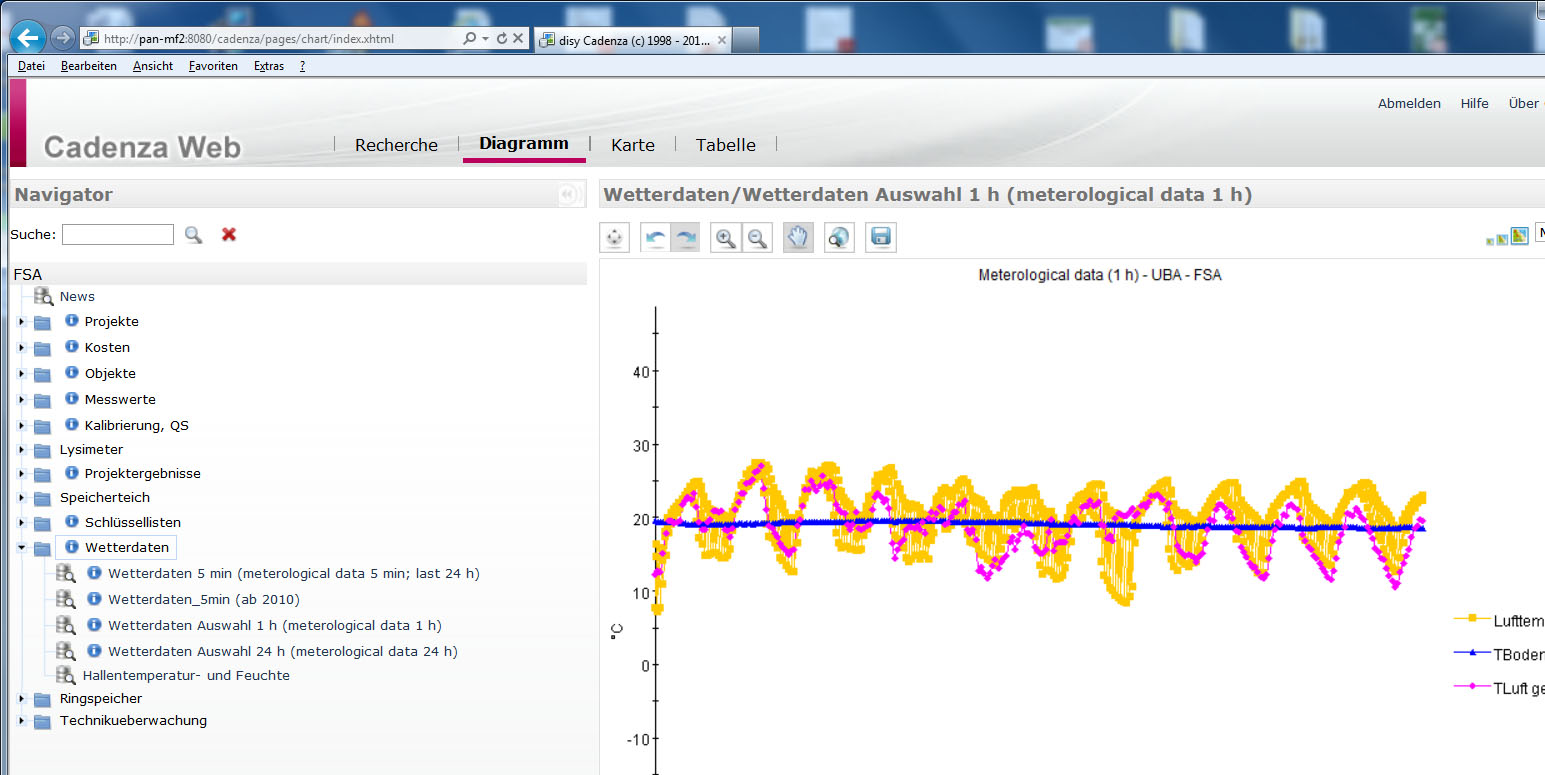

Data recall facility and evaluation

For data recall and evaluation, the UBA provides a complex, data-sensitive evaluation and report device.

For external users - see menu item external use of the test plant - and for the general public it is possible to get access to released project data via internet. The browser application allows for context-sensitive search in the FSA-DB.

<>
